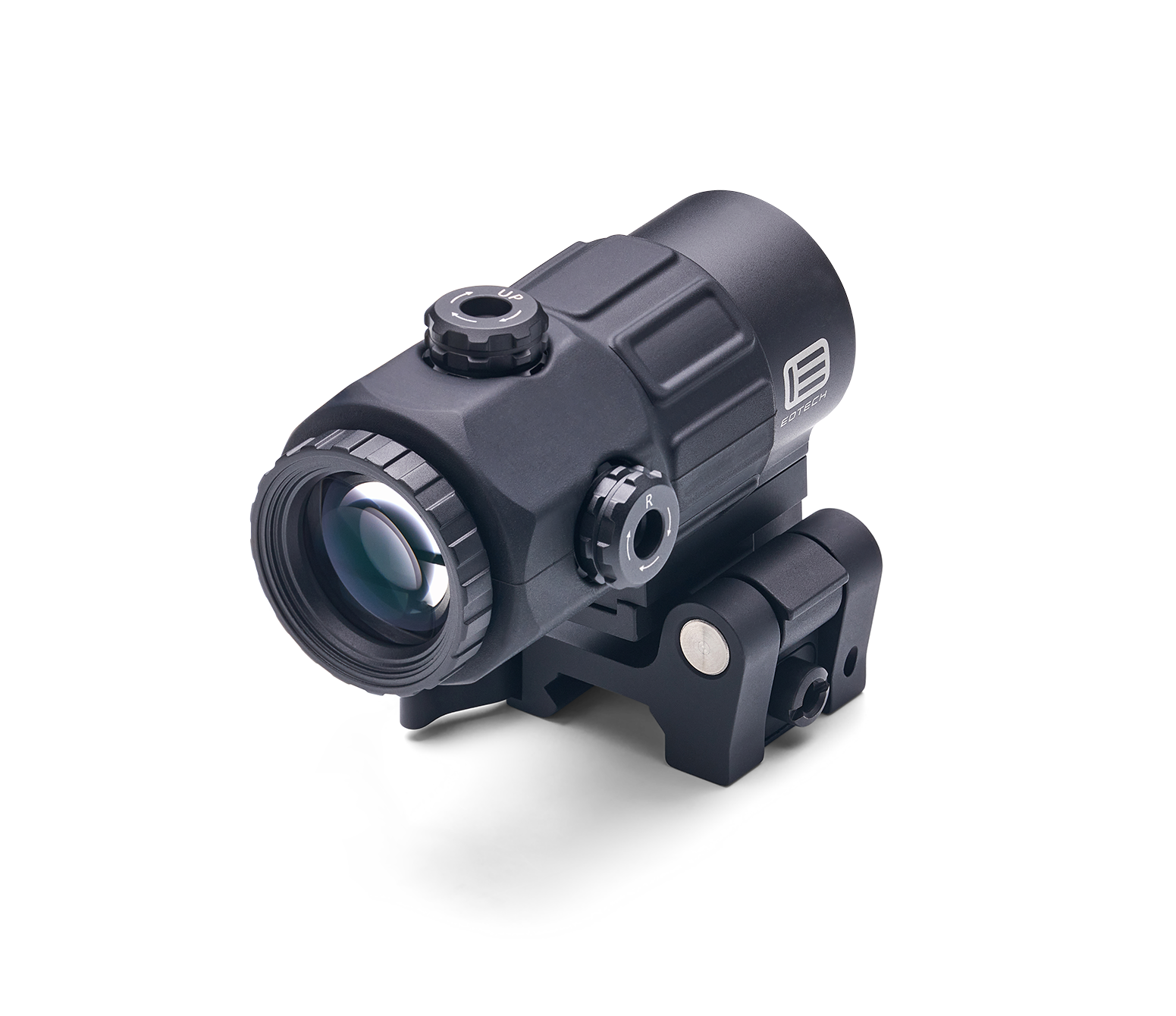

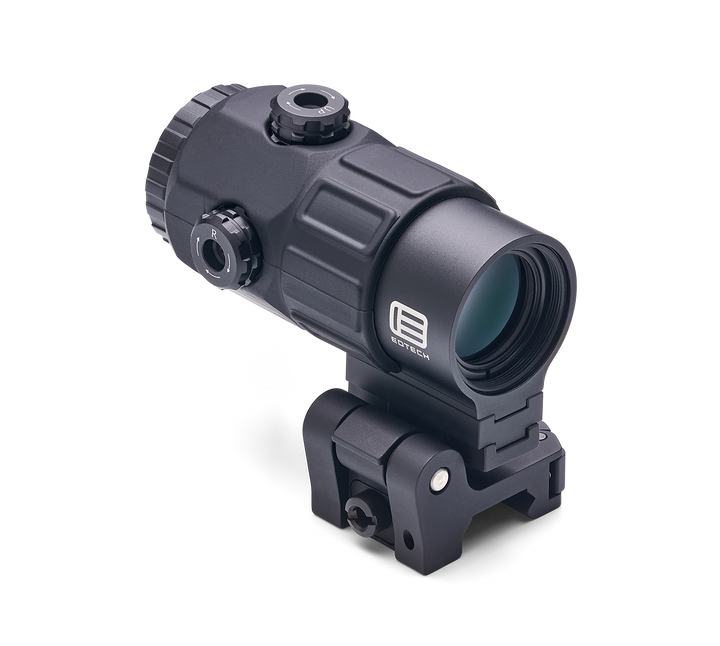

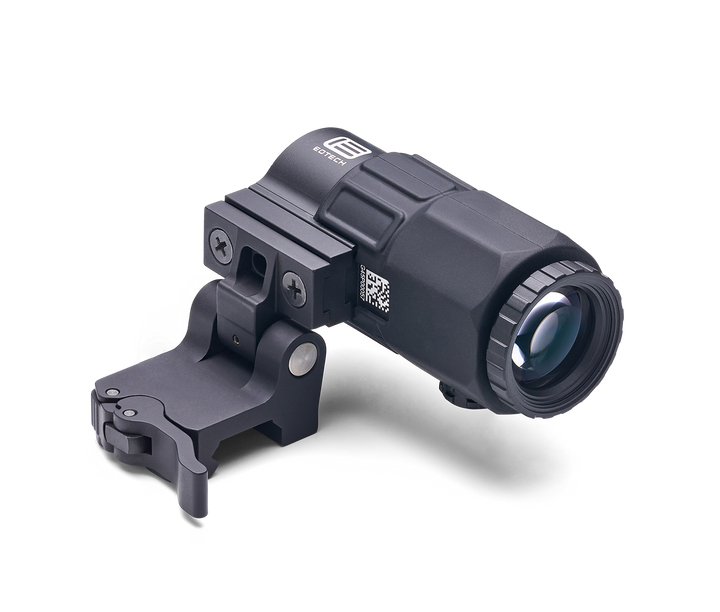

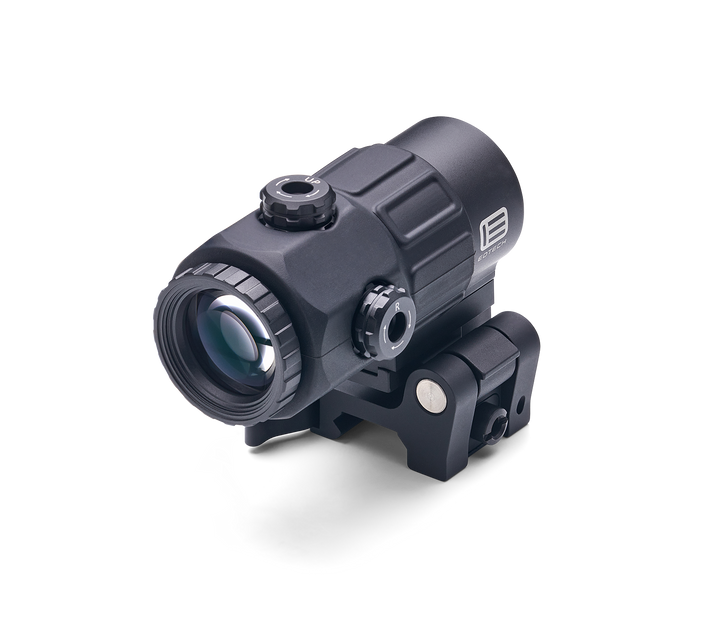

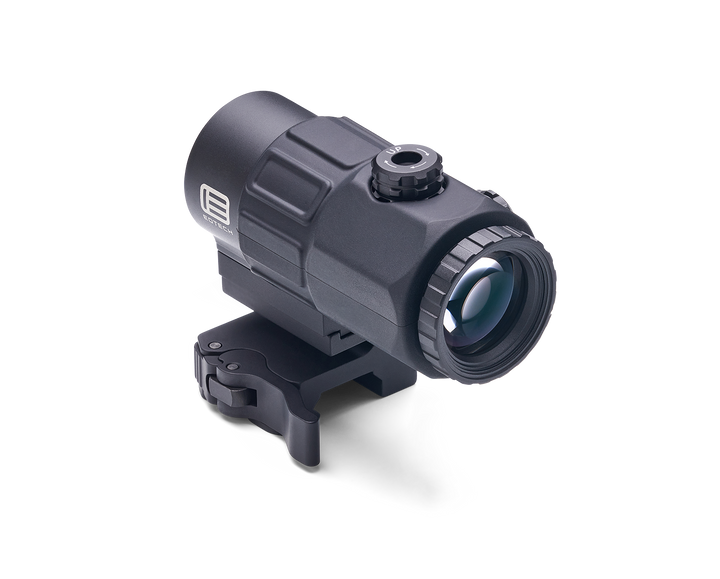

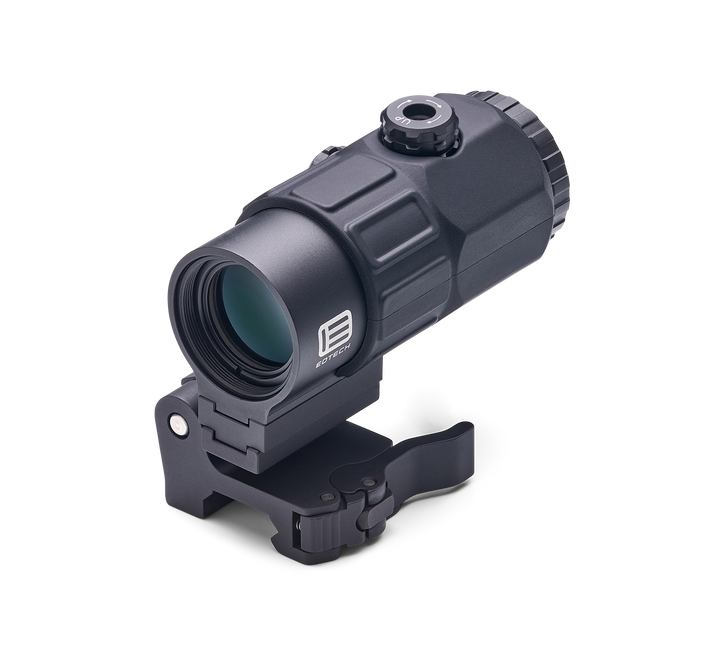

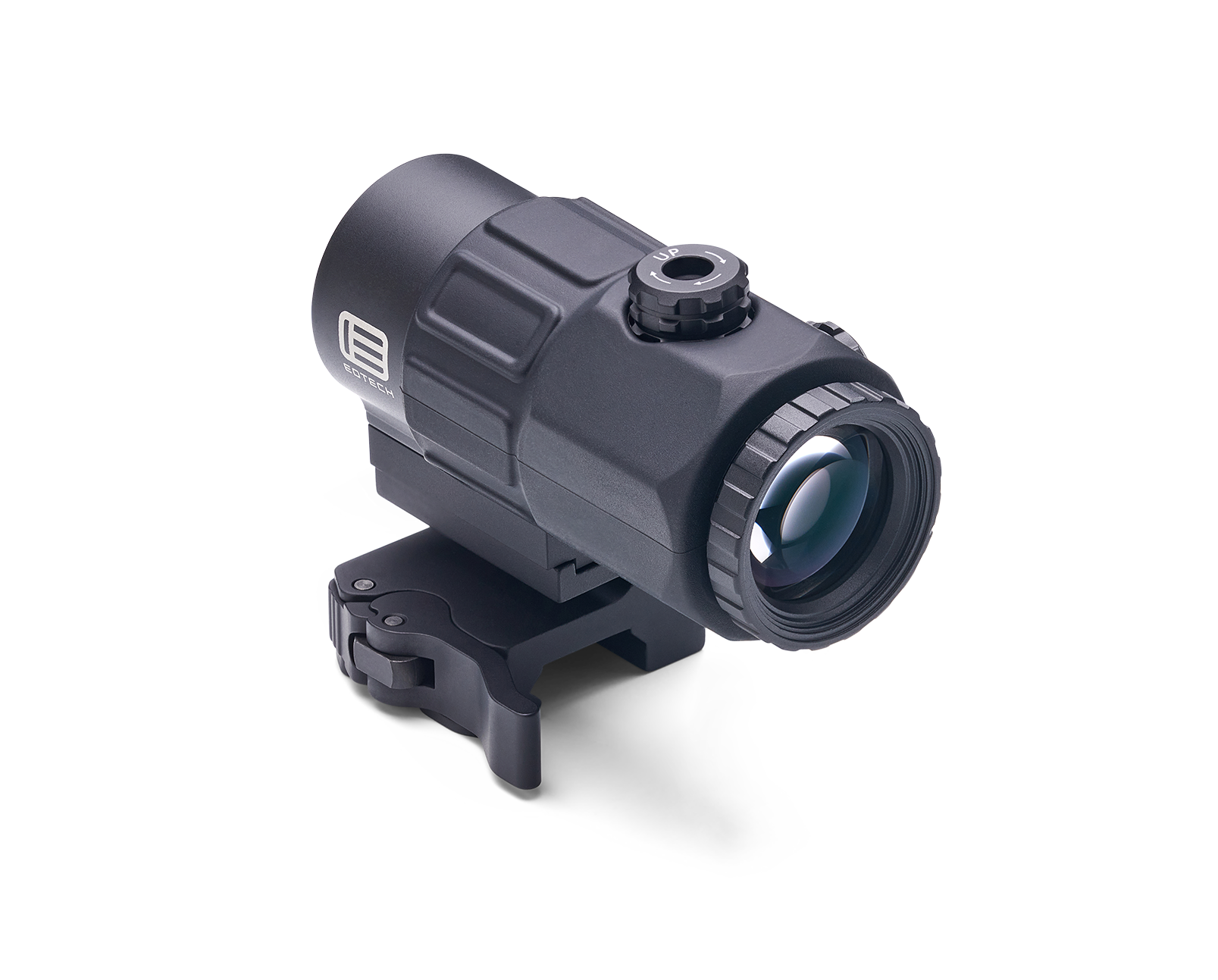

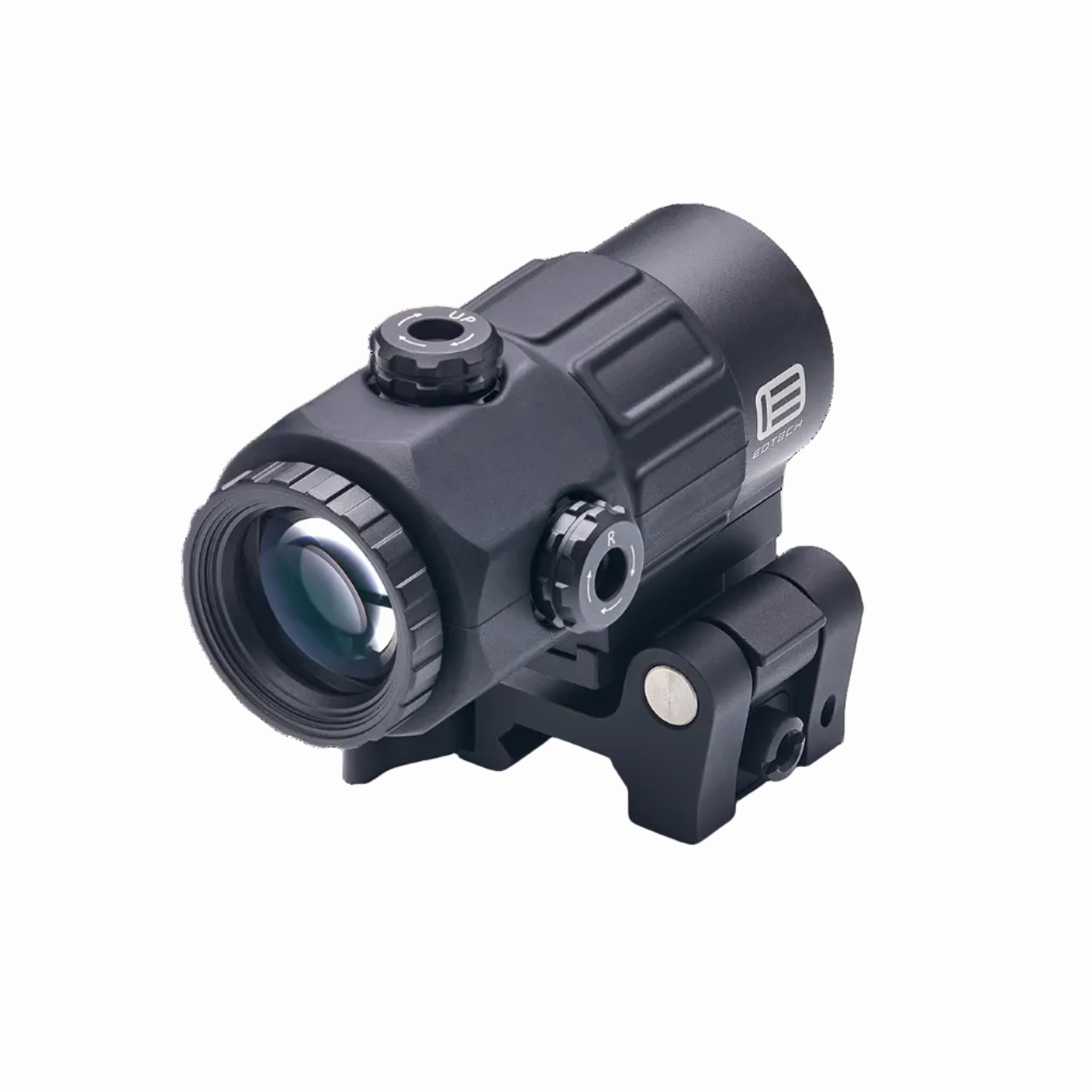

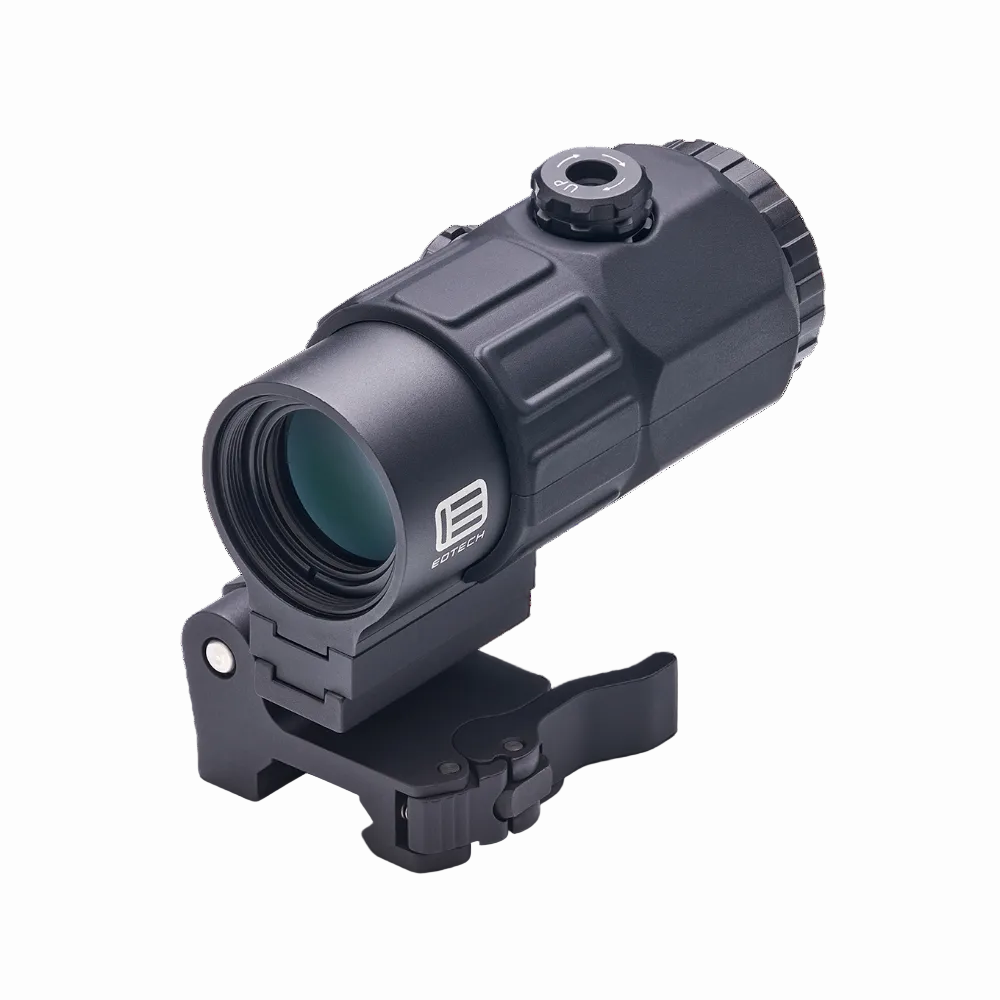

EOTECH G45.STS Magnifier

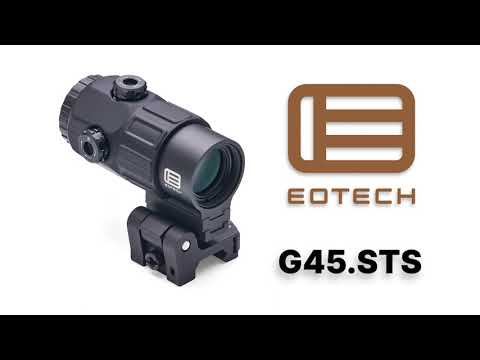

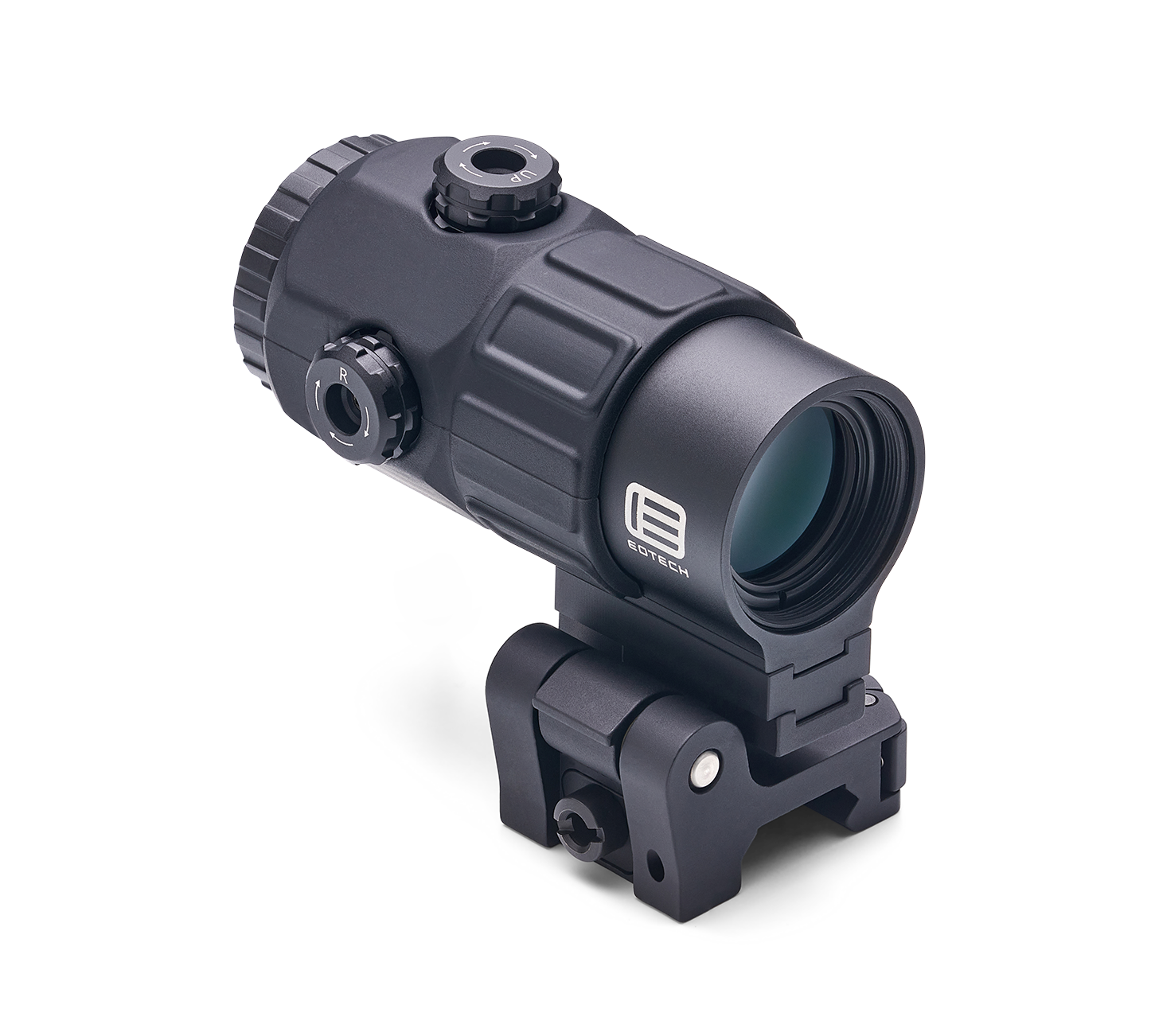

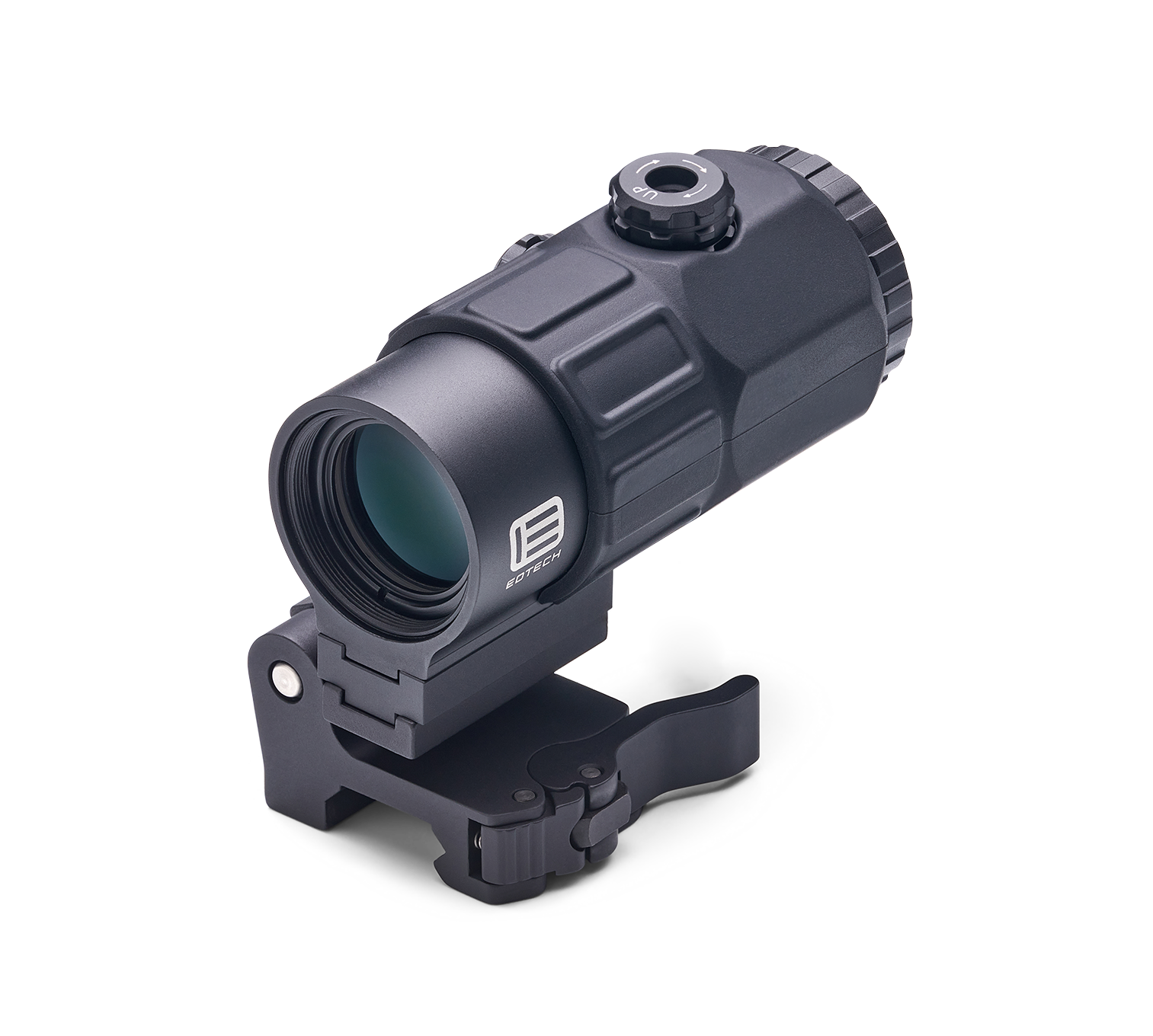

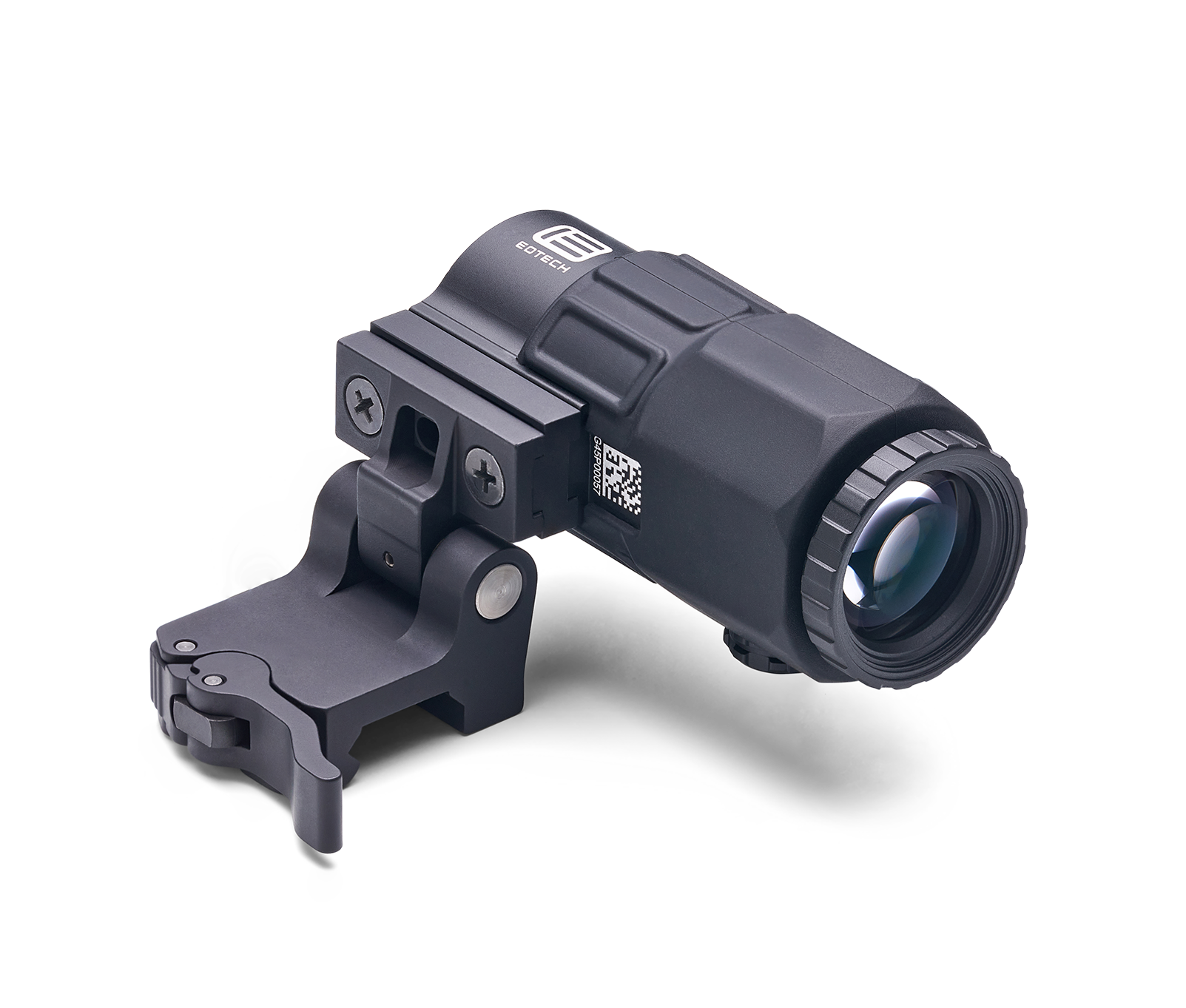

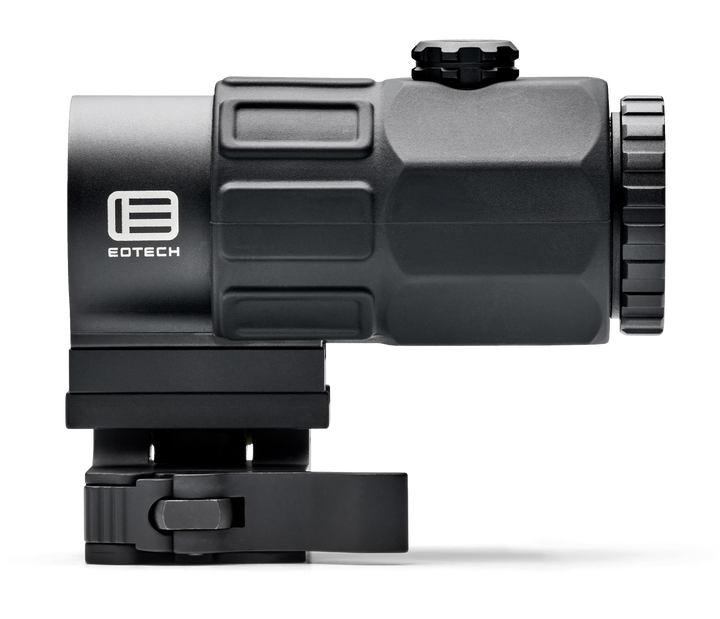

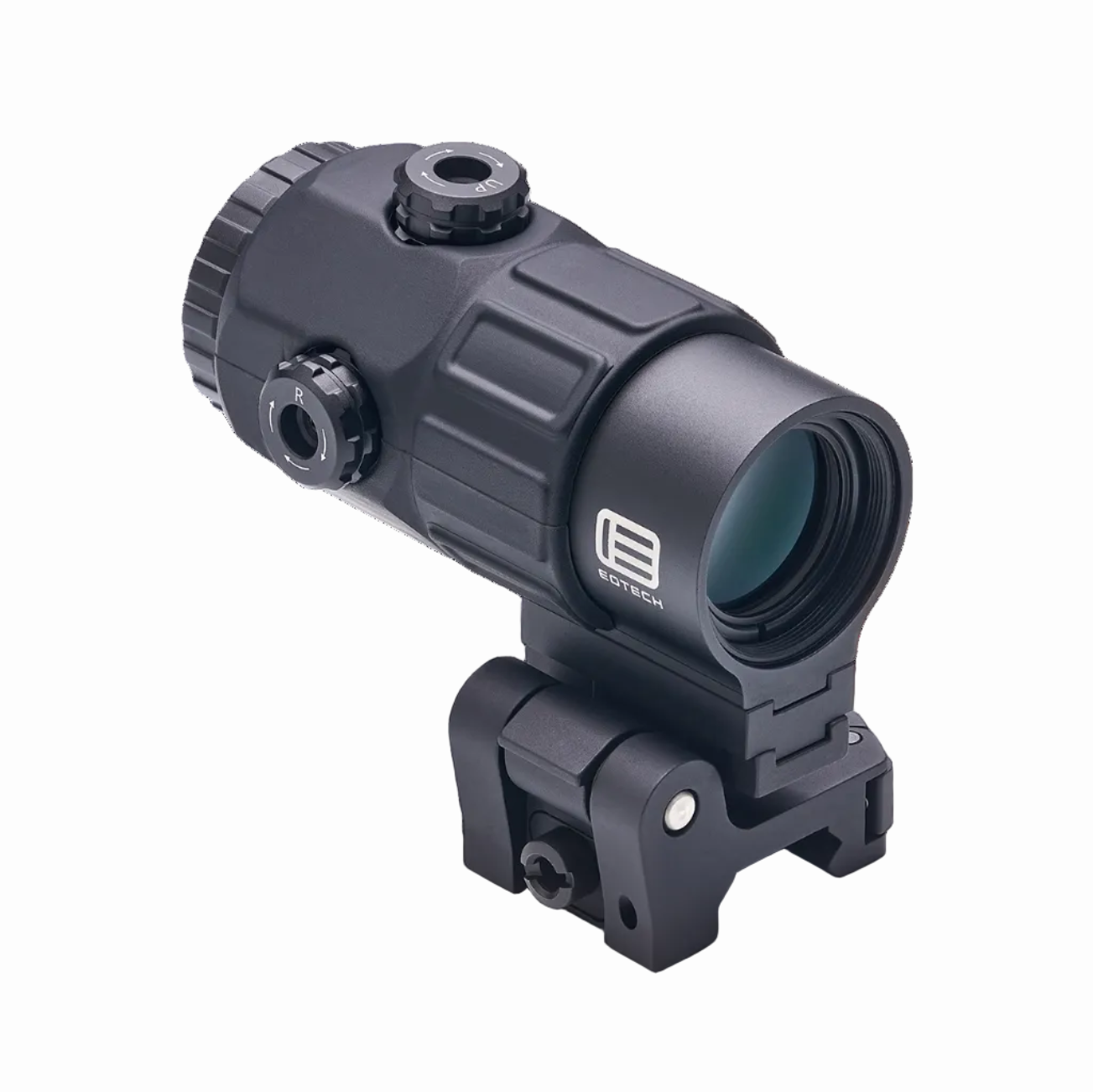

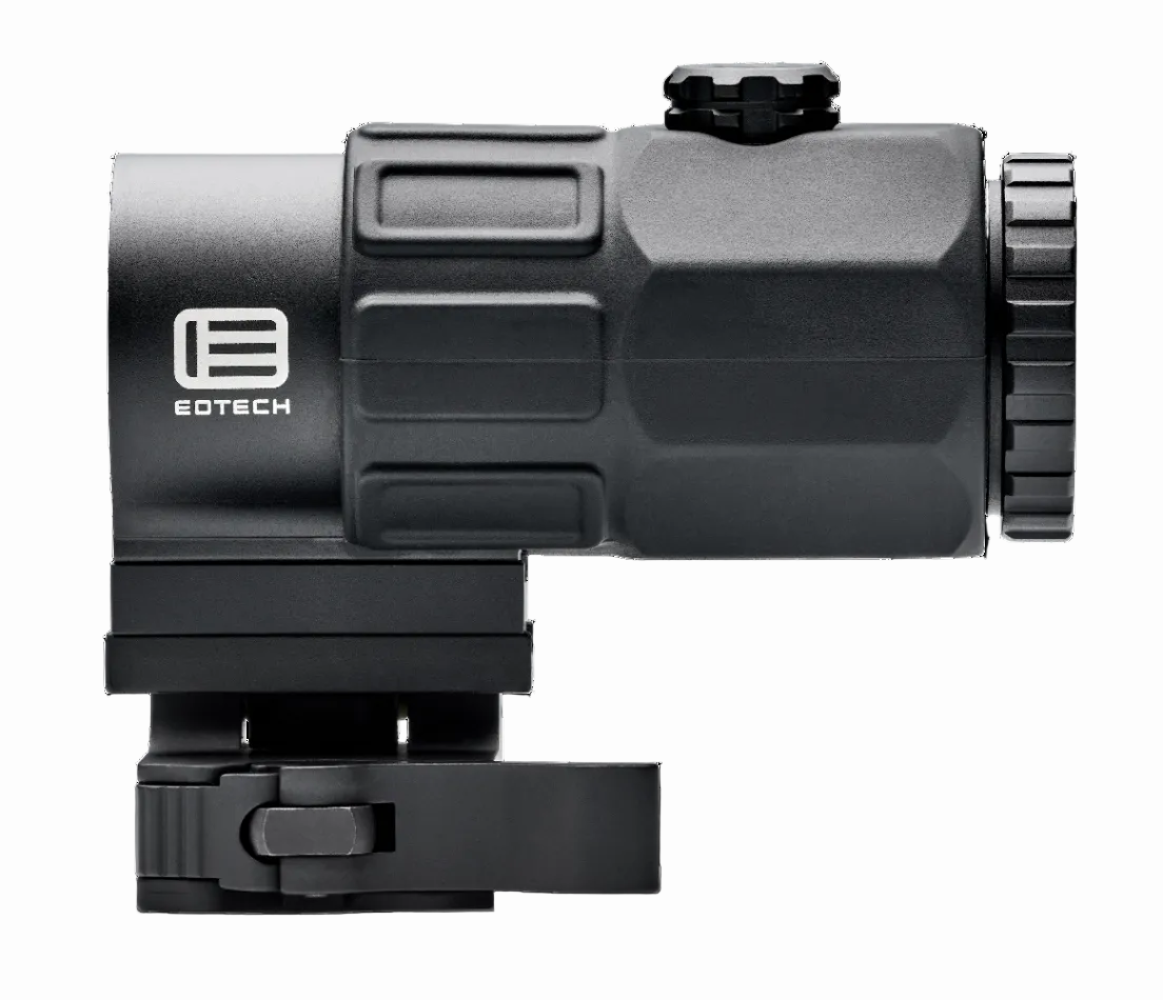

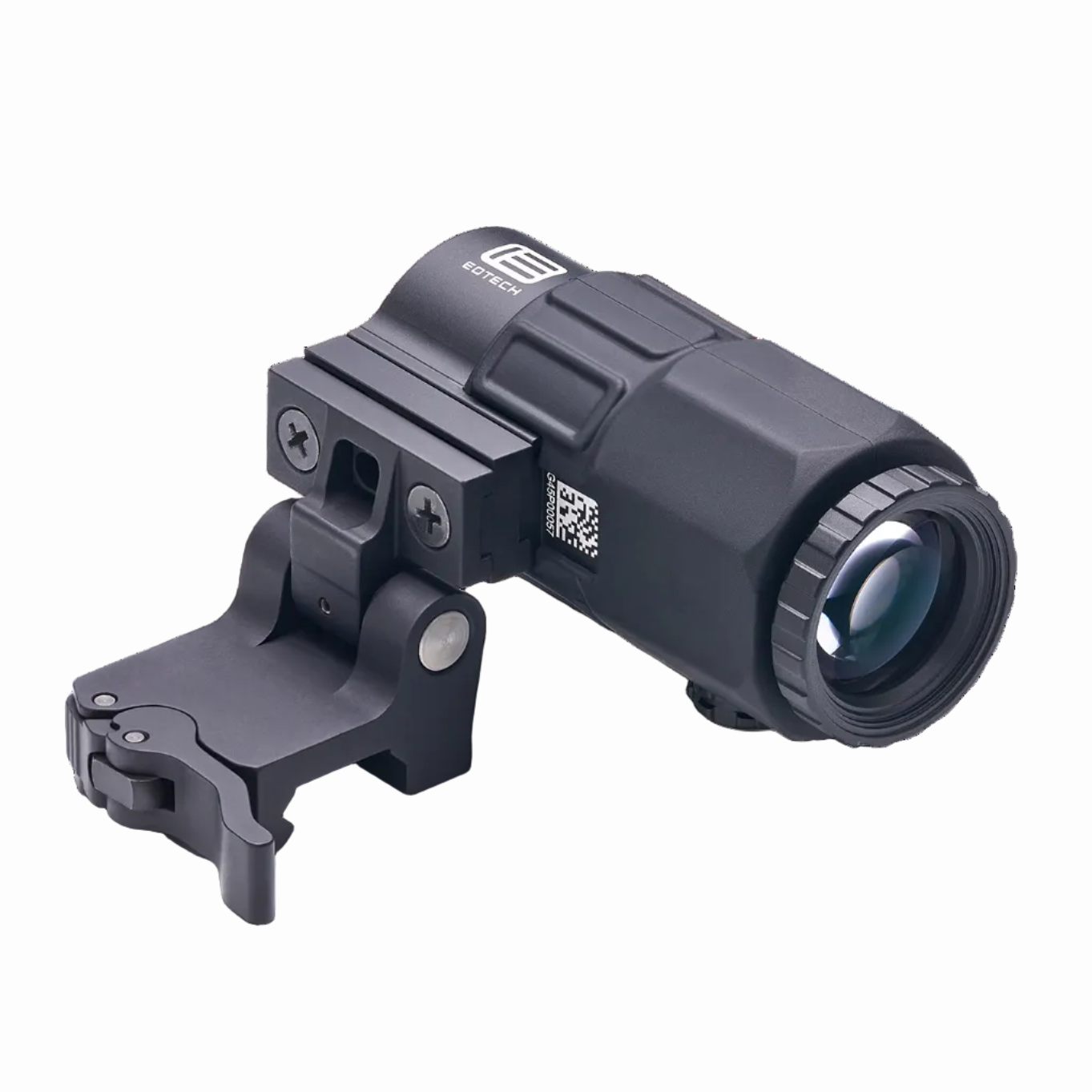

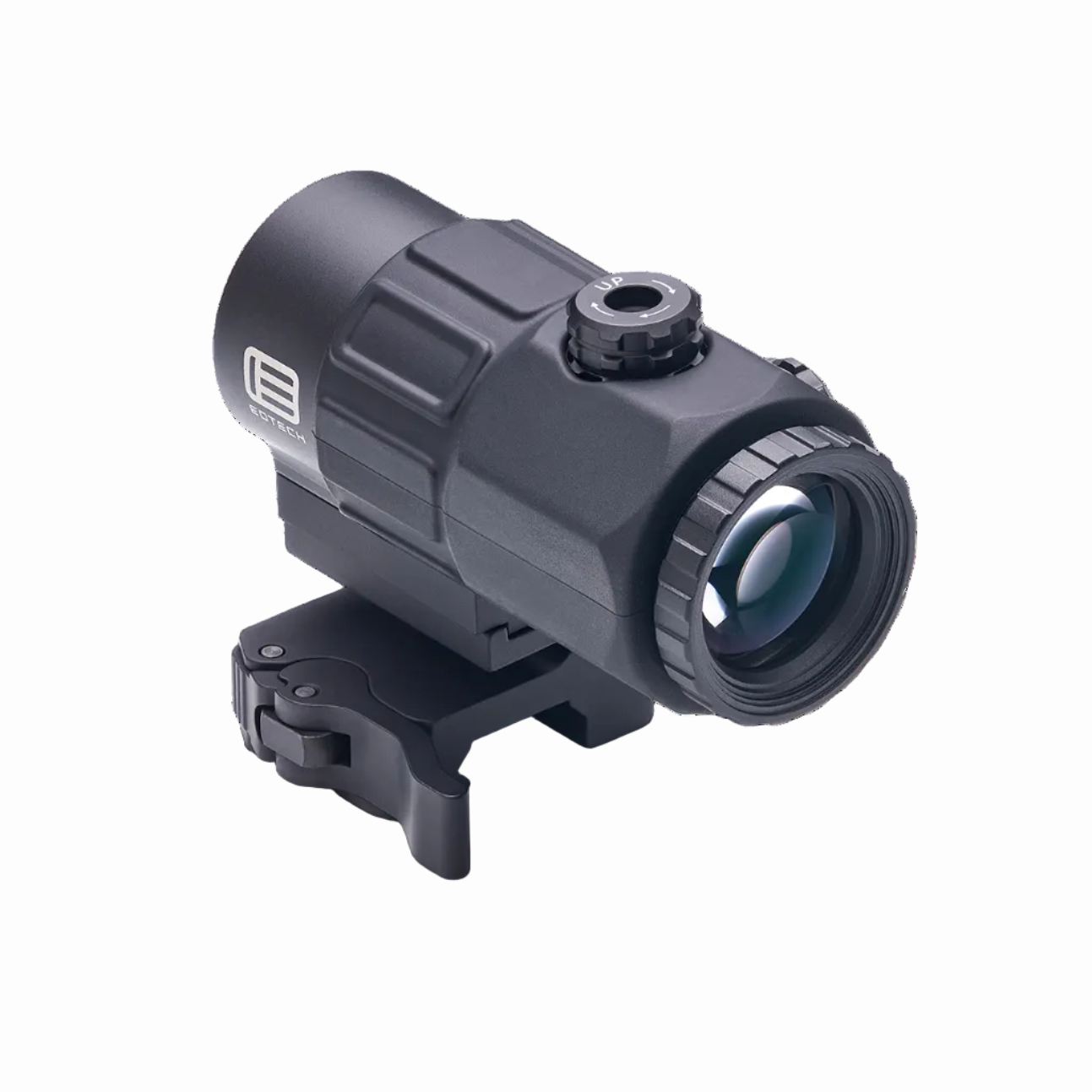

EOTECH G45.STS 5× Magnifier

Compact, durable, and purpose-built to extend the reach of your HWS without adding bulk. The G45.STS gives you 5×magnification in a housing with G33-like size/weight, plus a fast Switch-to-Side (STS) mount for instant 1× ↔ 5× transitions and tool-free centering adjustments.

Highlights

• 5× reach in a mini form factor – similar footprint to the G33, with extra magnification for longer PID and precision.

• STS flip mount – snap from 5× to 1× and back in one motion.

• Tool-free vertical/horizontal adjustment – quickly center your HWS reticle in the magnifier’s view.

• Rugged & sealed – fog-resistant optics; water resistant to 10 m (33 ft).

• Compatible with all EOTECH HWS models.

What’s in the box

• G45™ 5× Magnifier

• Switch-to-Side™ mount (Weaver / MIL-STD-1913)

• Operator manual, warranty card

• Protective case

Tech Specs

• Fixed magnification: 5×

• Eye relief: 2.6″ (66 mm)

• Field of view: 4°

• Dimensions (L × W × H): 3.9″ × 2.3″ × 3.3″ (99 × 58.4 × 83.8 mm)

• Weight w/ STS mount: 12.8 oz (362.9 g)

• Weight without mount: 9.5 oz (269.3 g)

• Mount interface: 1″ Weaver / Picatinny (1913)

• Operating temp: −40 °F to 140 °F (−40 °C to 60 °C)

• Water resistance: 33 ft (10 m)

• Sealing: Fog-resistant internal optics

• Origin: Assembled in USA

Setup tips

1. Mount behind your EOTECH HWS on 1913 rail, ensuring comfortable eye relief at your normal stock position.

2. Use the magnifier’s tool-free adjusters to center the HWS reticle.

3. Verify smooth STS operation and confirm zero at distance (no re-zero of HWS required).
