Davika QD Mount 57H for iRay RH25 / PFN640+

Davika TSM-01-QD-57H Mount for iRay RH25 / PFN640+

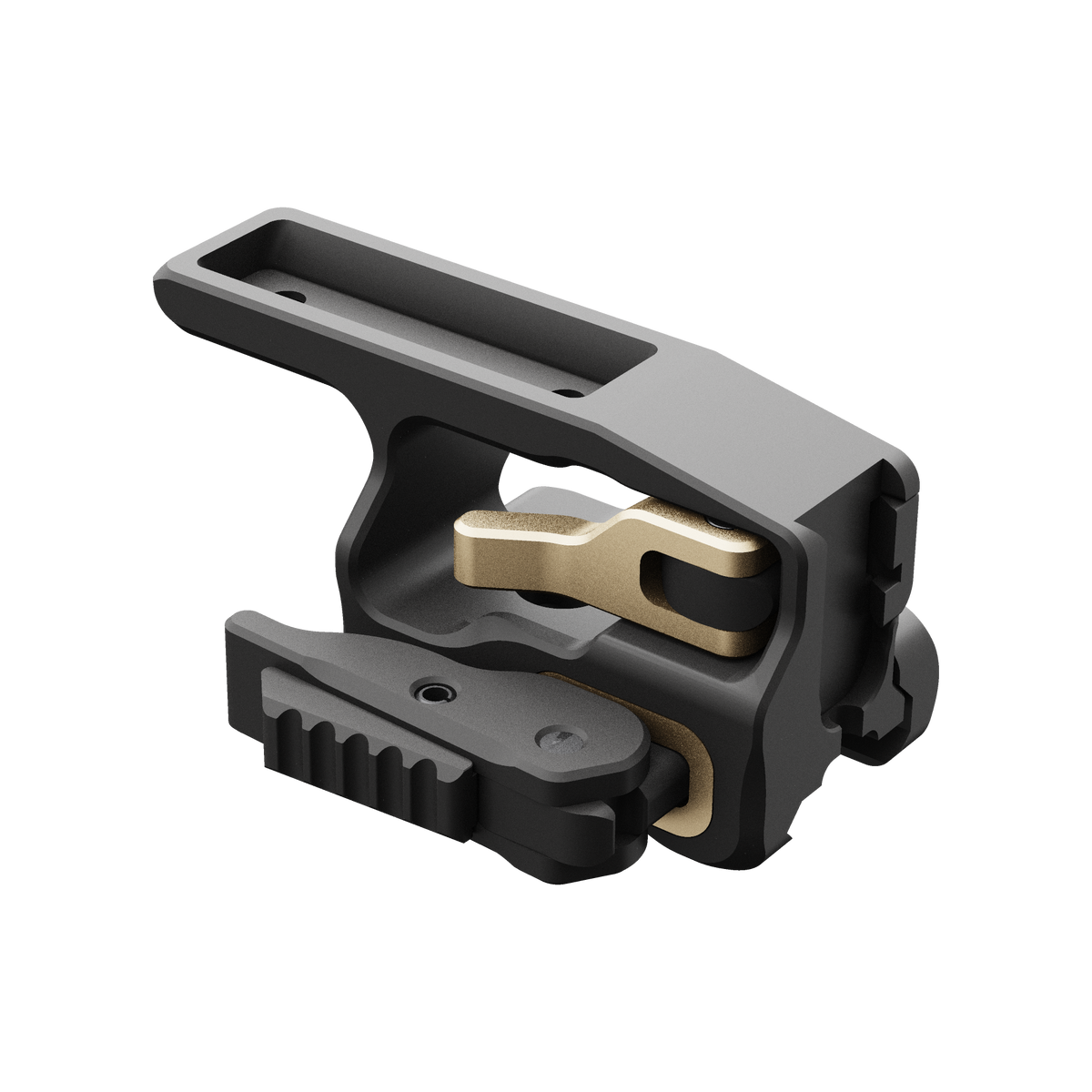

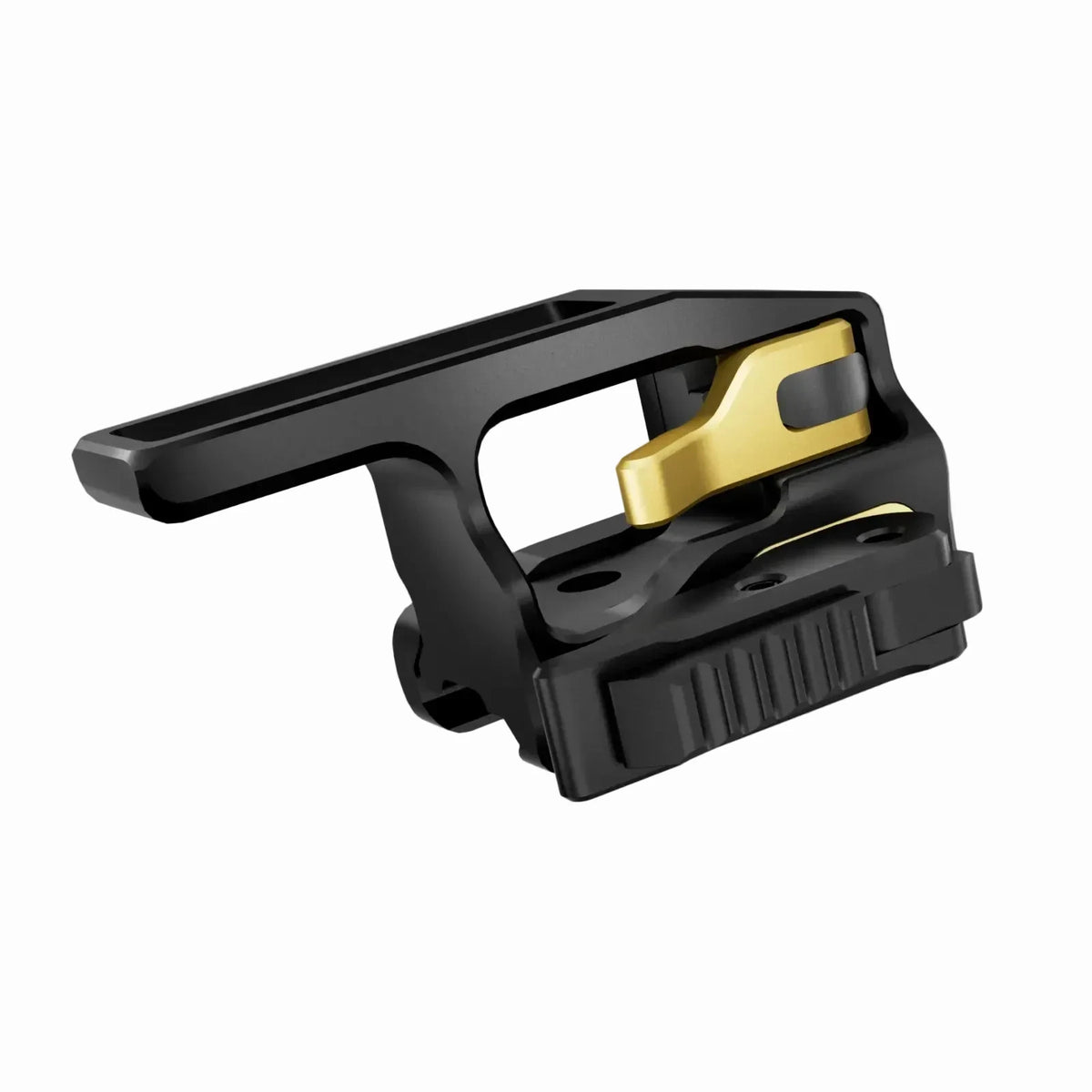

The Davika TSM-01-QD-57H is a multifunctional quick-detach riser mount designed specifically for the InfiRay (iRay) Rico Micro RH25 and PFN640+ V2 thermal devices. With an industry-standard 57 mm (2.25”) optical axis height and rearward cantilevered design, it provides improved eye relief and comfortable operation when wearing tactical equipment or plate carriers.

The TSM-01-QD-57H is primarily designed for using the thermal device as a primary optic, while also providing an integrated interface for mounting a secondary red dot at an angle. It can additionally be used to mount the thermal device as a clip-on in front of a red dot at the same 2.25” height, without requiring additional risers or adapters.

Key Features

57 mm Optical Axis

• 57 mm / 2.25” optical axis height
• Rearward cantilever design provides additional eye relief
• Designed for comfortable use with tactical equipment and plate carriers
• Suitable for primary thermal optic and clip-on configurations

Thermal Device Compatibility

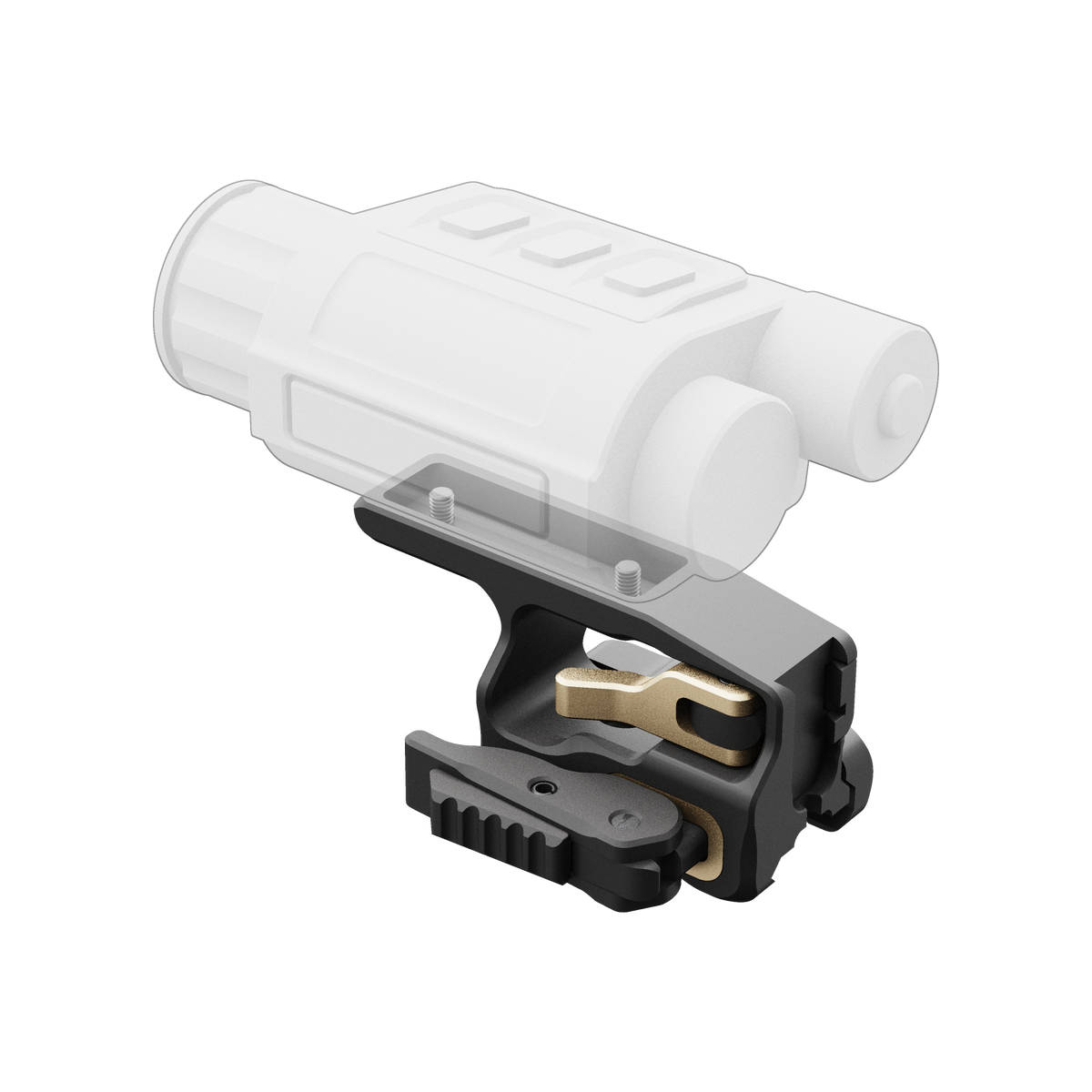

• Designed for InfiRay (iRay) Rico Micro RH25
• Compatible with InfiRay (iRay) PFN640+ V2
• Can be configured as a standalone primary thermal sight
• Can be used as a clip-on in front of a red dot positioned at 2.25” height

Integrated Tactical Interface

• Front section incorporates a dedicated quick-detach interface

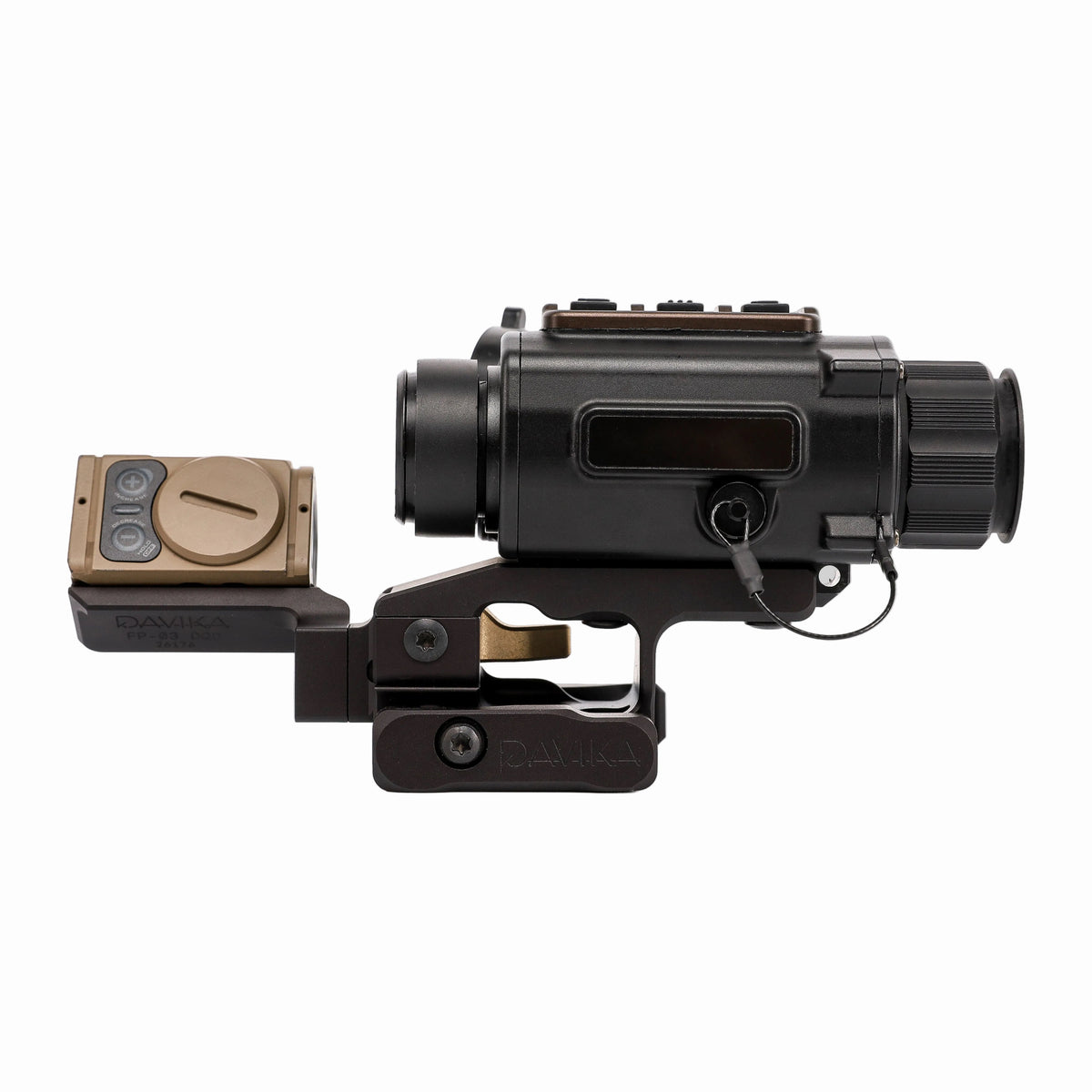

• Allows installation of a secondary aiming device

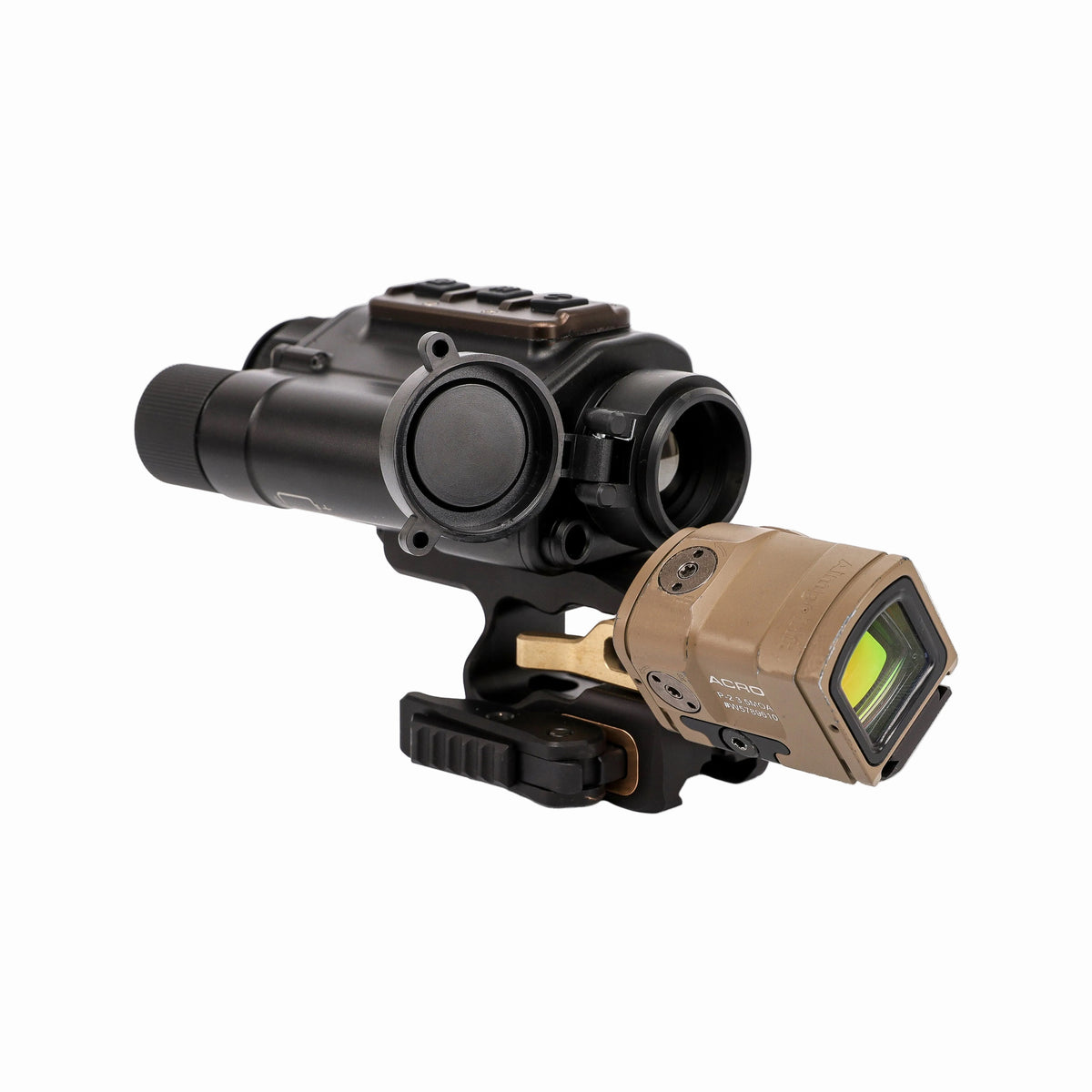

• Supports angled secondary red dot mounting
• Provides rapid transition between thermal and red dot aiming

RDM Ecosystem Integration

• Designed for integration with the DAVIKA RDM system
• Supports red dot, magnifier, and thermal configurations

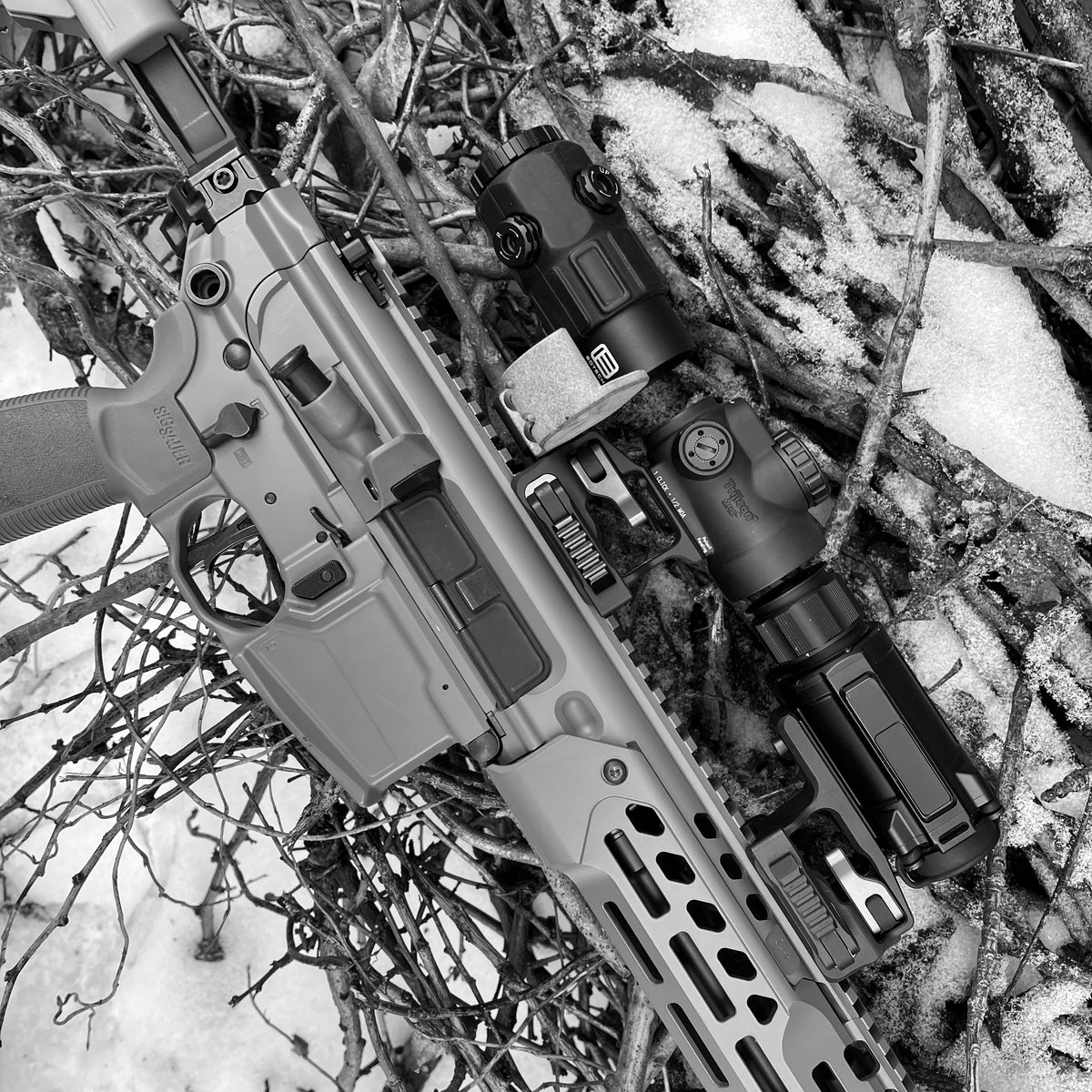

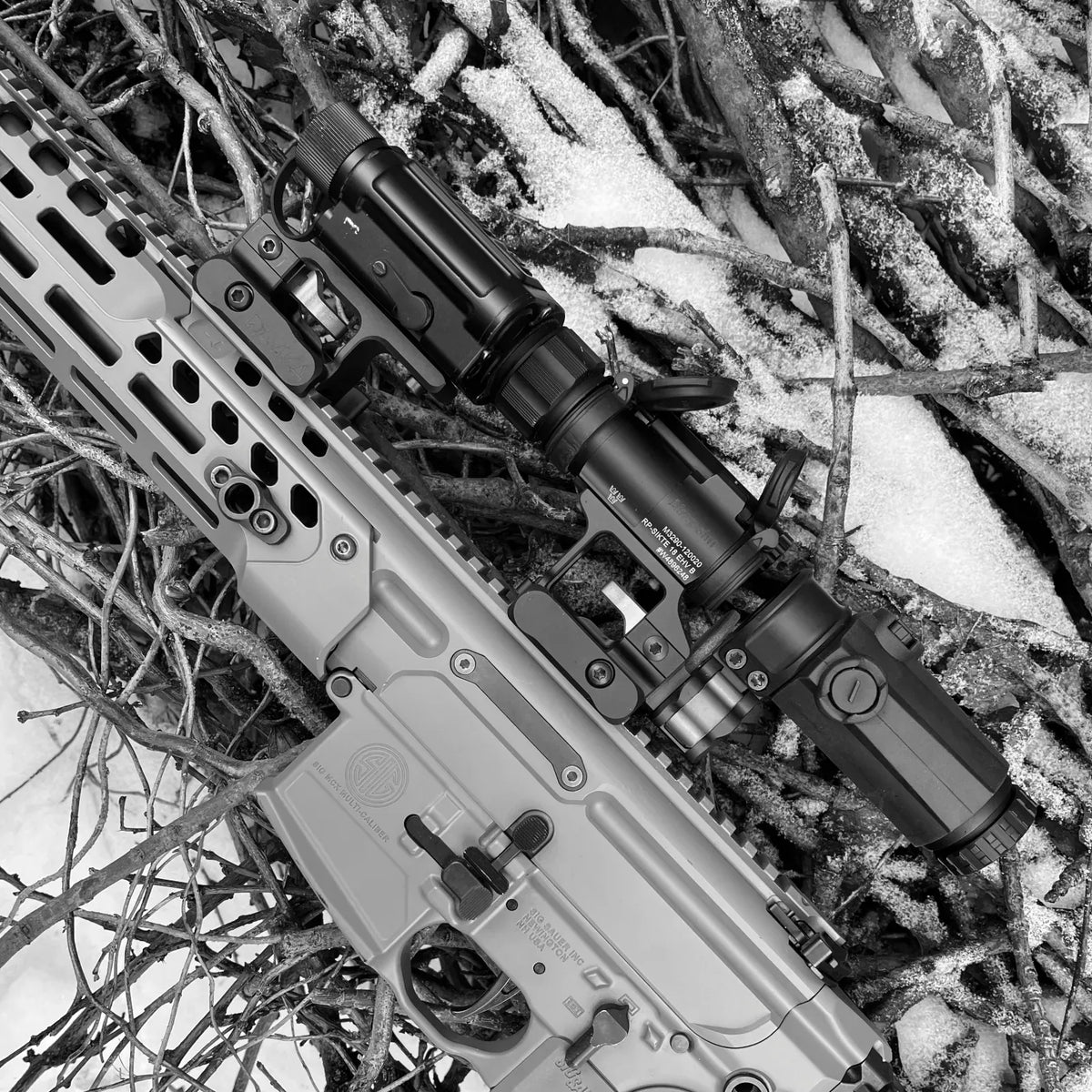

• Daytime configuration can combine a red dot, FTR magnifier, and TSM-01-QD-57H thermal clip-on
• Nighttime configuration allows the primary red dot and magnifier to be removed and the thermal mount used as the primary optic
• Designed for consistent point-of-impact repeatability during configuration changes

Precision Mounting

• Precision-milled longitudinal recess contacts the Picatinny rail along two narrow parallel lines
• Helps minimize the effect of rail surface imperfections
• Center-cut recoil lug distributes clamping force across two bearing surfaces
• Designed to address rail tolerance variations and prevent shifting under heavy recoil
• Provides repeatable positioning on the Picatinny rail

Quick-Detach System

• Eccentric QD mechanism with adjustable clamping tension
• Tool-free mounting and removal
• Ergonomic lever with dedicated locking button
• Helps prevent accidental release
• Designed for repeatable return-to-zero performance after repeated removal and installation

Construction & Finish

• Manufactured from 7075-T6 aluminum
• MIL-A-8625 Type III Hardcoat Anodized finish
• Stainless-steel fasteners with dark anti-reflective coating
• Drainage channels throughout structural openings and internal areas

Platform Compatibility

• AR-15
• AR-10 / SR-25

Technical Specifications

Model: TSM-01-QD-57H
Optical Axis Height: 57 mm / 2.25”
Compatible Devices: InfiRay (iRay) Rico Micro RH25 / PFN640+ V2
Mounting Interface: Picatinny rail
Material: 7075-T6 aluminum
Finish: MIL-A-8625 Type III Hardcoat Anodized
QD System: Adjustable eccentric quick-detach mechanism
Safety: Locking QD lever

The Davika TSM-01-QD-57H is designed for users who need a flexible mounting solution for integrating thermal, red dot, and magnified optics across day and night configurations. Its 57 mm optical axis, rearward cantilever, integrated secondary optic interface, and RDM ecosystem compatibility provide a versatile platform for both primary thermal and clip-on applications.
